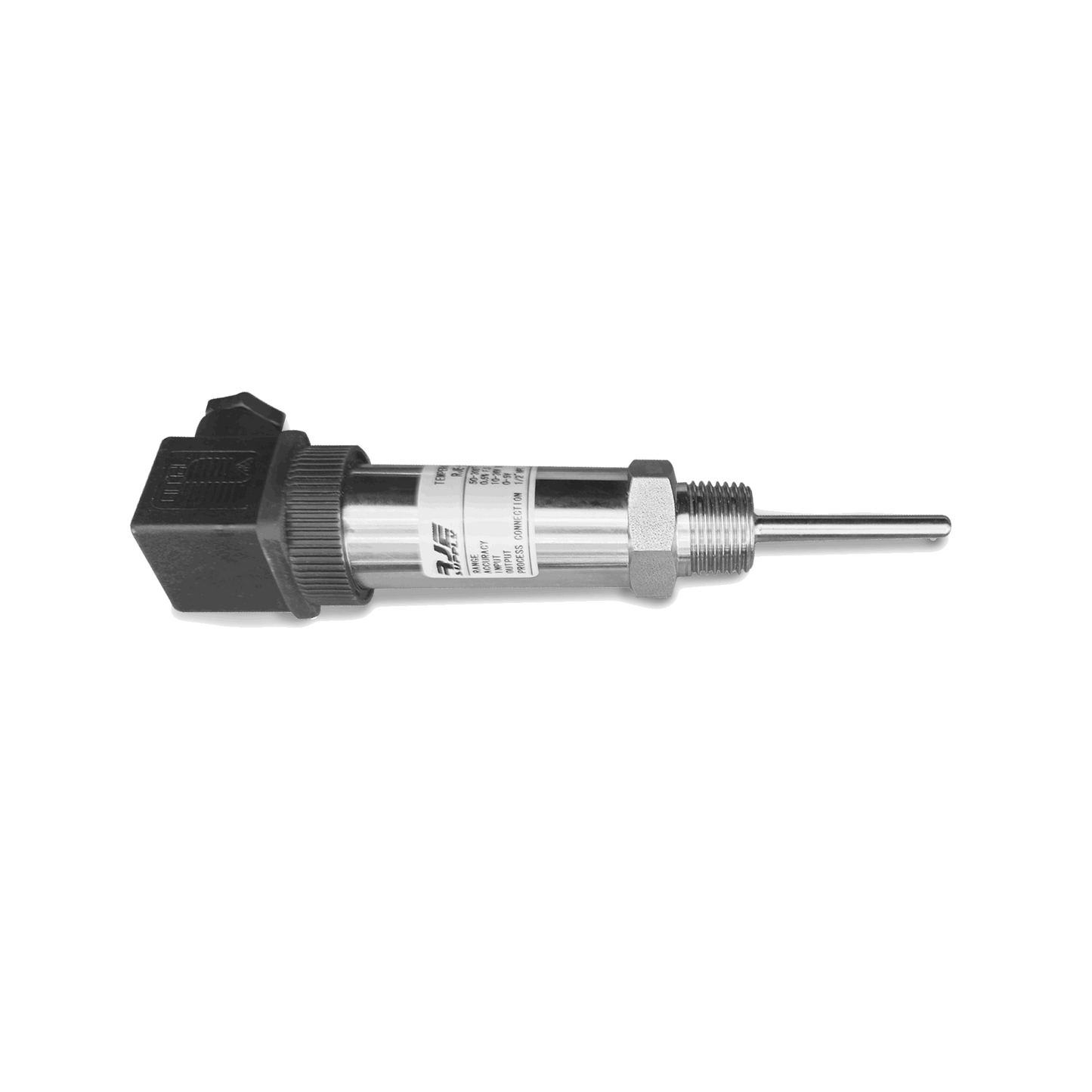

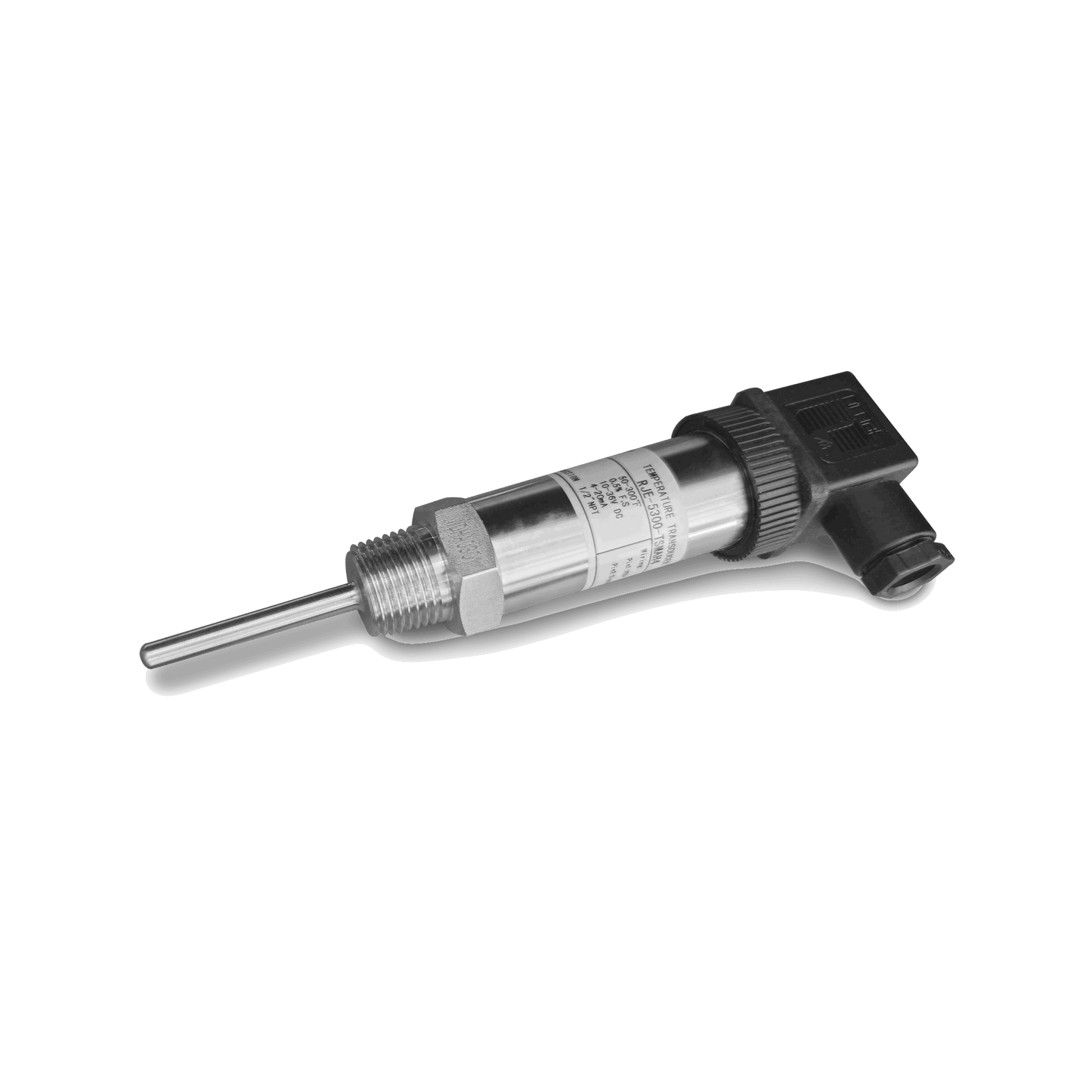

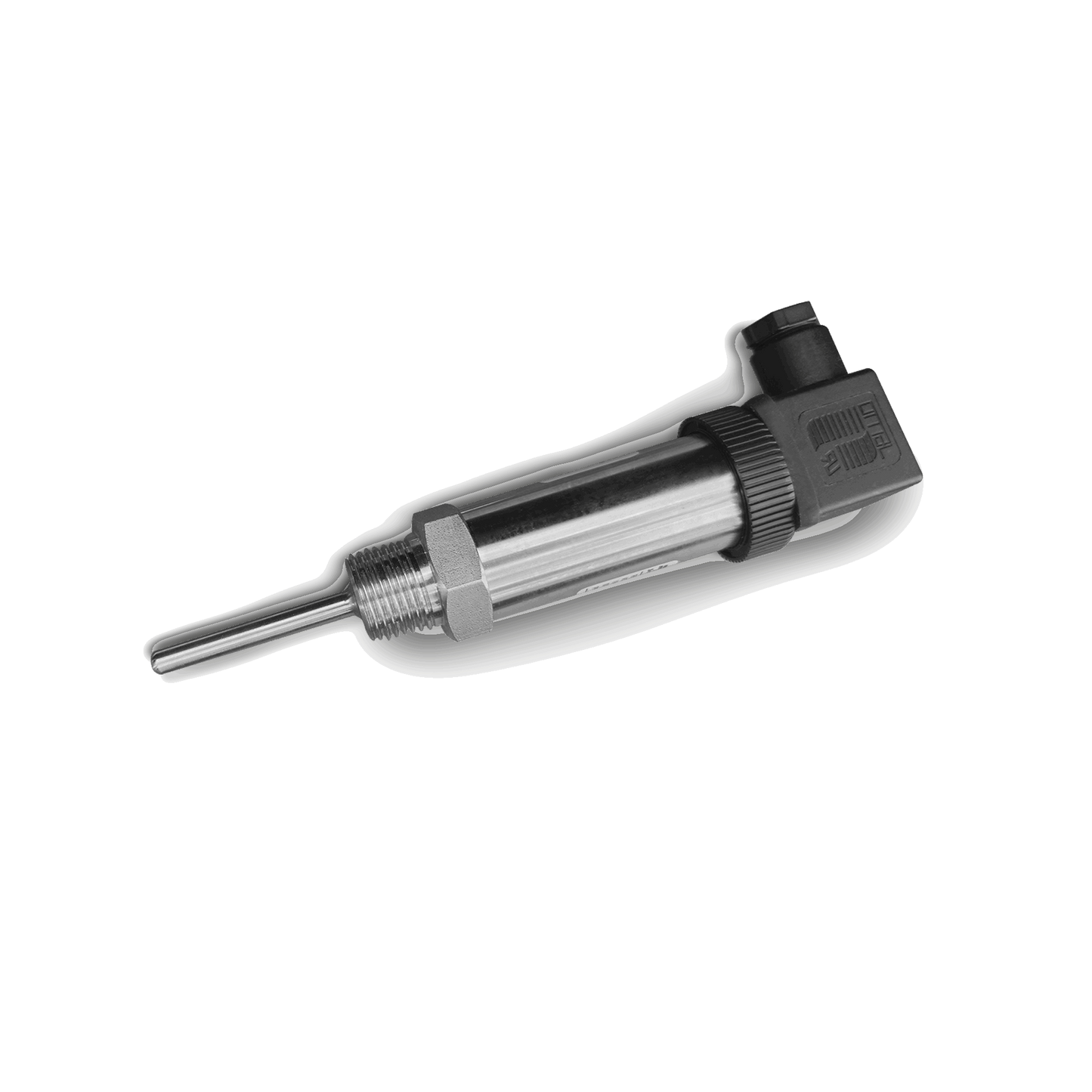

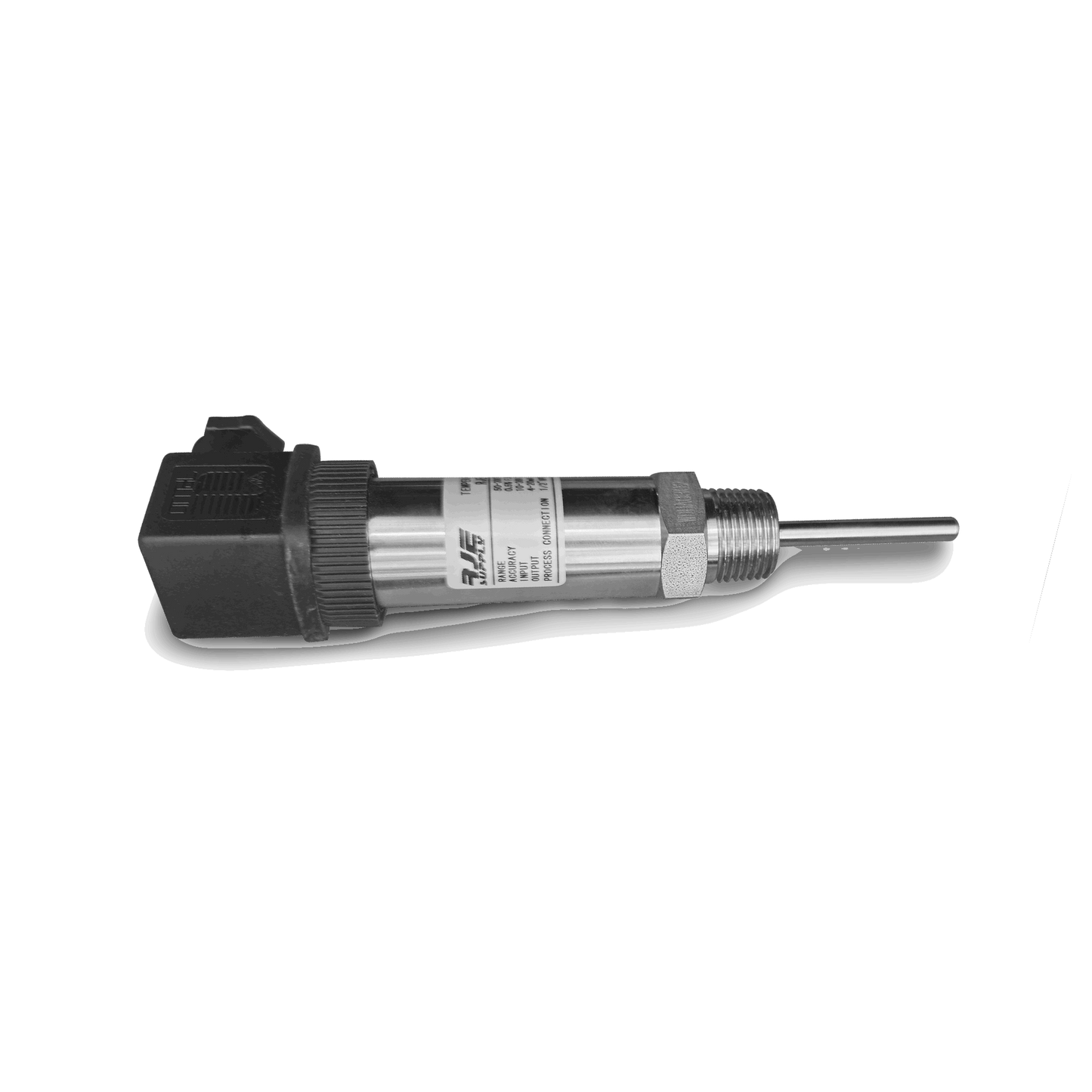

RJE 5300 Temperature Sensor

RJE-5300-TSVH4 | -15-150°C (5-302°F) | 1/2" NPT | 4-pin Hirschman | 0-5VDC

RJE-5300-TSMAH4 | -15-150°C (5-302°F) | 1/2" NPT | 4-pin Hirschman | 4-20mA

Product Specifications:

• Measurement Range: -15-150°C [5-302°F]
• Accuracy: 0.5% Full Scale (FS)
• Output Signal: 4-20mA; 0-5VDC
• Input Voltage: 10-32VDC
• Probe Length: 1”
• Medium Material: Stainless Steel (316)
• Process Connector: 1/2” NPT
• Electrical Connector: Hirschman (DIN)

Available Features:

• Pressure Range: -50-600°C [-58-1115°F]
• Process Connector: G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5
