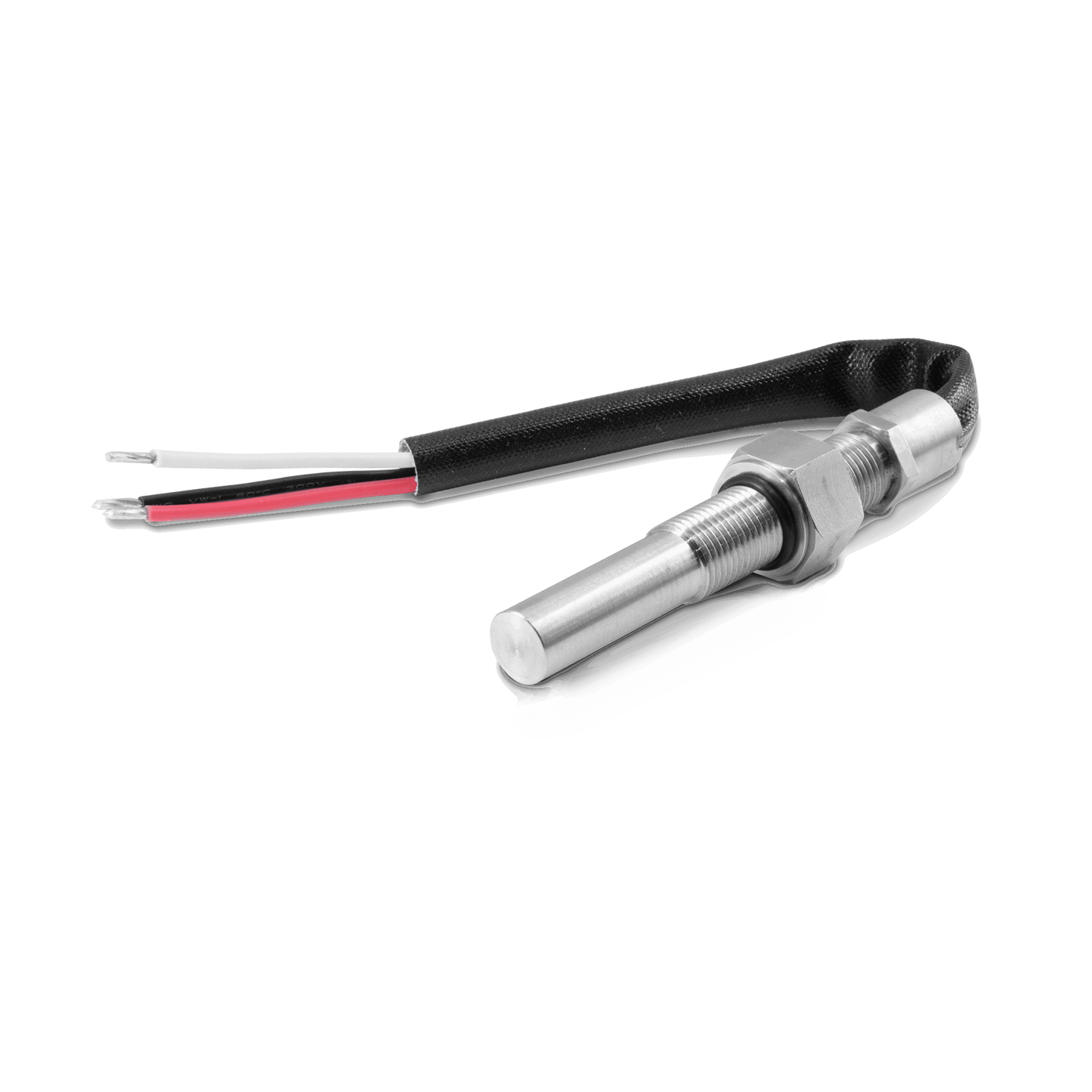

RJE 1200-MSS3P Magnetic Pickup (Speed Sensor)

1200‐MSS3P | 3" Speed Sensor | _ | 3‐wire

994.5045 | 5" Speed Sensor | 5/8‐18 UNF | 2‐wire

994.5015U | 3" Speed Sensor | 5/8‐18 UNF | 3‐wire

Product Specifications:

• Thread Size: 0.5” 20-Teeth Thread (1/2-20UNF)
• Cable Length: 6”
• Supply Voltage: 7.5-30VDC
• Signal Output: NPN pull-up resistor output, low level is less than 0.8V, high level is less than power supply voltage -1V
• Output Frequency: 0-10KHz
• Medium Material: Stainless Steel (SS304)

View Spec Sheet

 How To Use
